Last Update: Dec. 6, 2025

CT Assignment 9 (PS9): Data Type and Digital Audio

The goals of this assignment are to learn how to create user-defined data types in Java and to learn about digital audio.

Due: 11:55 PM, Dec. 14, 2025

Part 0: Program Analysis (Offline Learning)

Watch this video on encapsulation (public and private access modifiers). (pptx, pdf)
Watch this Online document (Sec. 1.5) on how to use the Standard Audio library.

Part 1. Understanding the Problem

Write a program to simulate plucking a guitar string using the Karplus-Strong algorithm. This algorithm played a seminal role in the emergence of physically modeled sound synthesis (where a physical description of a musical instrument is used to synthesize sound electronically).

Digital audio..

Simulate the plucking of a guitar string. When a guitar string is plucked, the string vibrates and creates sound. The length of the string determines its fundamental frequency of vibration. We model a guitar string by sampling its displacement (a real number between -1/2 and +1/2) at N equally spaced points (in time), where N equals the sampling rate (44,100) divided by the fundamental frequency (rounding the quotient to the nearest integer).

Plucking the string. The excitation of the string can contain energy at any frequency. We simulate the excitation with white noise: set each of the N displacements to a random real number between -1/2 and +1/2.
The resulting vibrations. After the string is plucked, the string vibrates. The pluck causes a displacement which spreads wave-like over time. The Karplus-Strong algorithm simulates this vibration by maintaining a ring buffer of the N samples: the algorithm repeatedly deletes the first sample from the buffer and adds to the end of the buffer the average of the first two samples, scaled by an energy decay factor of 0.996.

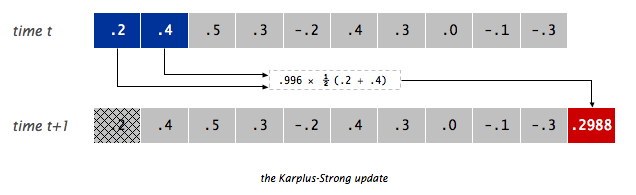

Why it works? The two primary components that make the Karplus-Strong algorithm work are the ring buffer feedback mechanism and the averaging operation.

The ring buffer feedback mechanism. The ring buffer models the medium (a string tied down at both ends) in which the energy travels back and forth. The length of the ring buffer determines the fundamental frequency of the resulting sound. Sonically, the feedback mechanism reinforces only the fundamental frequency and its harmonics (frequencies at integer multiples of the fundamental). The energy decay factor (.996 in this case) models the slight dissipation in energy as the wave makes a roundtrip through the string.
The averaging operation. The averaging operation serves as a gentle low-pass filter (which removes higher frequencies while allowing lower frequencies to pass, hence the name). Because it is in the path of the feedback, this has the effect of gradually attenuating the higher harmonics while keeping the lower ones, which corresponds closely with how a plucked guitar string sounds.

From a mathematical physics viewpoint, the Karplus-Strong algorithm approximately solves the 1D wave equation, which describes the transverse motion of the string as a function of time.

Ring buffer. Your first task is to create a data type to model the ring buffer. Write a class named RingBuffer that implements the following API:

public class RingBuffer
-----------------------------------------------------------------------------------------
        RingBuffer(int capacity)  // create an empty ring buffer, with given max capacity
    int size()                    // return number of items currently in the buffer
boolean isEmpty()                 // is the buffer empty (size equals zero)?
boolean isFull()                  // is the buffer full  (size equals capacity)?
   void enqueue(double x)         // add item x to the end
 double dequeue()                 // delete and return item from the front
 double peek()                    // return (but do not delete) item from the front

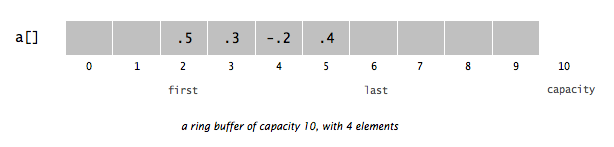

Since the ring buffer has a known maximum capacity, implement it using a double array of that length. For efficiency, use cyclic wrap-around: Maintain one integer instance variable first that stores the index of the least recently inserted item; maintain a second integer instance variable last that stores the index one beyond the most recently inserted item. To insert an item, put it at index last and increment last. To remove an item, take it from index first and increment first. When either index equals capacity, make it wrap-around by changing the index to 0.

Implement RingBuffer to throw an exception if the client attempts to dequeue() or peek() from an empty buffer or enqueue() into a full buffer.

Guitar string. Next, create a data type to model a vibrating guitar string. Write a class named GuitarString that implements the following API:

public class GuitarString
------------------------------------------------------------------------------------------------------------------------
       GuitarString(double frequency)  // create a guitar string of the given frequency, using a sampling rate of 44,100
       GuitarString(double[] init)     // create a guitar string whose size and initial values are given by the array
  void pluck()                         // set the buffer to white noise
  void tic()                           // advance the simulation one time step
double sample()                        // return the current sample
   int time()                          // return number of tics

Constructors. There are two ways to create a GuitarString object.
- The first constructor creates a RingBuffer of the desired capacity N (sampling rate 44,100 divided by frequency, rounded to the nearest integer), and initializes it to represent a guitar string at rest by enqueueing N zeros.
- The second constructor creates a RingBuffer of capacity equal to the size of the array, and initializes the contents of the buffer to the values in the array. On this assignment, its main purpose is for debugging and grading.
Pluck. Replace the N items in the ring buffer with N random values between -0.5 and +0.5.
Tic. Apply the Karplus-Strong update: delete the sample at the front of the ring buffer and add to the end of the ring buffer the average of the first two samples, multiplied by the energy decay factor.
Sample. Return the value of the item at the front of the ring buffer.
Time. Return the total number of times tic() was called.

Interactive guitar player. GuitarHeroLite.java is a sample GuitarString client that plays the guitar in real-time, using the keyboard to input notes. When the user types the lowercase letter 'a' or 'c', the program plucks the corresponding string. Since the combined result of several sound waves is the superposition of the individual sound waves, we play the sum of all string samples.


public class GuitarHeroLite {

    public static void main(String[] args) {
	int    DRAW_SAMPLE_RATE = 20;    // draw at a rate of 20/sec
	int    AUDIO_PER_DRAW   = StdAudio.SAMPLE_RATE / DRAW_SAMPLE_RATE;

	int    PLAY_TIME        = 10;    // target 60 seconds display window
	int    XWIDTH           = DRAW_SAMPLE_RATE * PLAY_TIME;

        // Create two guitar strings, for concert A and C
        double CONCERT_A = 440.0;
        double CONCERT_C = CONCERT_A * Math.pow(2, 3.0/12.0);
        GuitarString stringA = new GuitarString(CONCERT_A);
        GuitarString stringC = new GuitarString(CONCERT_C);

        // Set up parameters for visualization
	StdDraw.setCanvasSize(768, 256);
	StdDraw.setPenColor(StdDraw.RED);
	StdDraw.setXscale(0, XWIDTH);
	StdDraw.setYscale(-1, 1);

	// fence post
	double xprev = 0, yprev = 0;

        // the main input loop
        while (true) {

            // check if the user has typed a key, and, if so, process it
            if (StdDraw.hasNextKeyTyped()) {

                // the user types this character
                char key = StdDraw.nextKeyTyped();

                // pluck the corresponding string
                if (key == 'a') { stringA.pluck(); }
                if (key == 'c') { stringC.pluck(); }
            }

	    // compute the superposition of the samples for duration
	    double sample = stringA.sample() + stringC.sample();

	    // send the result to standard audio
	    StdAudio.play(sample);

	    // advance the simulation of each guitar string by one step
	    stringA.tic();
	    stringC.tic();

	    // Decide if we need to draw.
	    //   Audio sample rate is StdAudio.SAMPLE_RATE per second
	    //   Draw sample rate is DRAW_SAMPLE_RATE
	    //   Hence, we draw every StdAudio.SAMPLE_RATE / DRAW_SAMPLE_RATE
	    if (stringA.time() % AUDIO_PER_DRAW == 0) {
		StdDraw.line(xprev, yprev, xprev+1, sample);
		xprev ++;
		yprev = sample;
		// XXX check if wrapped around
	    } // end of if

	} // end of while

    } // end of main

} // end of class

Write a program GuitarHero.java that is similar to GuitarHeroLite, but supports a total of 37 notes on the chromatic scale from 110Hz to 880Hz. In general, make the ith character of the string

String keyboard = "q2we4r5ty7u8i9op-[=zxdcfvgbnjmk,.;/' ";

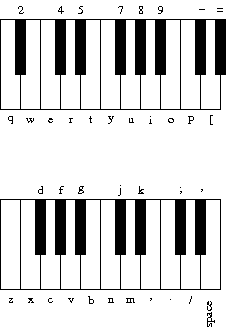

This keyboard arrangement imitates a piano keyboard: The "white keys" are on the qwerty and zxcv rows and the "black keys" on the 12345 and asdf rows of the keyboard.

The ith character of the string corresponds to a frequency of 440 × 2^{(i - 24) / 12}, so that the character 'q' is 110Hz, 'i' is 220Hz, 'v' is 440Hz, and ' ' is 880Hz. Don't even think of including 37 individual GuitarString variables or a 37-way if statement! Instead, create an array of 37 GuitarString objects and use keyboard.indexOf(key) to figure out which key was typed. Make sure your program does not crash if a key is played that is not one of your 37 notes.

Note that GuitarHeroLite displays sound wave, but will not wrap around. In other words, after a while you can no longer see the sound wave. You will need to wrap the wave around, by calling the clear() method of StdDraw when the wave has reached the boundary.

Part 2. Carrying Out the Actual Work

These are purely suggestions for how you might make progress. You do not have to follow these steps.

Visit the guitar subdirectory to download the templates for RingBuffer.java and GuitarString.java to get you started. It also contains GuitarHeroLite.java, StdAudio.java, StdDraw.java.
We recommend that you first implement RingBuffer.
- The design of your RingBuffer should look like RingBuffer.java, except that you will need to fill in all of the constructors and methods.
- We recommend that you define the instance variables as follows:
```
public class RingBuffer {
    private double[] rb;          // items in the bufer
    private int first;            // rb[first]  = first item in the buffer
    private int last;             // rb[last-1] = last  item in the buffer
    private int size;             // current number of items in the buffer
}
```
- Your constructor for RingBuffer will need to allocate and initialize an array of double using new. Observe that you have to do this in the constructor (and not when you declare the instance variables) since otherwise you wouldn't know how big to make the array.
- After you fill in the methods for RingBuffer, your first test should be to run it using the given test code in main().
Next implement the guitar string class.
- Your design should look like GuitarString.java. It contains one of the private instance variables that you will need, and all of the constructors and methods ready to be filled in. The constructors will both initialize the instance variables and use enqueue().
- To implement pluck(), use a combination of the RingBuffer methods size(), dequeue(), and enqueue() to replace the buffer with values between -0.5 and 0.5.
- To implement tic(), use a combination of enqueue(), dequeue(), and peek().
- To implement sample(), use peek().
When you have GuitarString.java working, change the program GuitarHeroLite.java to GuitarHero.java, by creating an array of notes.

Testing. Be sure to thoroughly test each piece of your code as you write it. We offer some suggestions below.

Ring buffer. You can test your RingBuffer data type on the following toy client, using the main() provided. It enqueues the numbers 1 through N, and then repeatedly dequeues the first two, and enqueues their sum.


  public static void main(String[] args) {
      int N = Integer.parseInt(args[0]);
      RingBuffer buffer = new RingBuffer(N);
      for (int i = 1; i <= N; i++) {
          buffer.enqueue(i);
      }
      double t = buffer.dequeue();
      buffer.enqueue(t);
      System.out.println("Size after wrap-around is " + buffer.size());
      while (buffer.size() >= 2) {
          double x = buffer.dequeue();
          double y = buffer.dequeue();
          buffer.enqueue(x + y);
      }
      System.out.println(buffer.peek());
  }

% java RingBuffer 10
Size after wrap-around is 10
55.0


% java RingBuffer 100
Size after wrap-around is 100
5050.0

Guitar string. You can test your GuitarString data type with the following toy client, using the main() provided.


  public static void main(String[] args) {
      int N = Integer.parseInt(args[0]);
      double[] samples = { .2, .4, .5, .3, -.2, .4, .3, .0, -.1, -.3 };
      GuitarString testString = new GuitarString(samples);
      for (int i = 0; i < N; i++) {
          int t = testString.time();
          double sample = testString.sample();
          System.out.printf("%6d %8.4f\n", t, sample);
          testString.tic();
      }
  }

% java GuitarString 25
     0   0.2000
     1   0.4000
     2   0.5000
     3   0.3000
     4  -0.2000
     5   0.4000
     6   0.3000
     7   0.0000
     8  -0.1000
     9  -0.3000
    10   0.2988
    11   0.4482
    12   0.3984
    13   0.0498
    14   0.0996
    15   0.3486
    16   0.1494
    17  -0.0498
    18  -0.1992
    19  -0.0006
    20   0.3720
    21   0.4216
    22   0.2232
    23   0.0744
    24   0.2232

Guitar Hero. Type the following into your guitar to get the beginning of Led Zeppelin's Stairway to Heaven. Multiple notes in a column are dyads and chords.
```
                                              w q q
        8       u       7       y             o p p
i p z v b z p b n z p n d [ i d z p i p z p i u i i
```
What is this familiar melody (S = space)?
```
nn//SS/ ..,,mmn //..,,m //..,,m nn//SS/ ..,,mmn
```
You finish by making sure that GuitarHero plots the sound wave in real-time, as the user is playing the keyboard guitar. The output should look something like this, but change over time.

Part 3. Submitting Your Assignment

All you need to submit electronically for PS9 are the RingBuffer.java file, the GuitarString.java file, the GuitarHero.java file, and the README.txt file. Please use the template of README.txt.

    //*******************************************************************
    //
    //   File: FileName.java          Assignment No.: 9
    //
    //   Author: <your name>      Email: <your email>
    //
    //   Class: ClassName
    //
    //   Time spent on this problem:
    //   --------------------
    //      Please give a description about your design.
    //
    //
    //   Report file name:
    //*******************************************************************

The submission repository for ps9 is https://gitee.com/simmonsong/ct-xmuf25-ps9.

Please follow the instructions in Assignments Submission to submit your assignments.

Git introduction is a help document for git utilization..

Good luck and enjoy!

Some references:

Slide flute. Here's a description of a physically modeled slide flute by Perry Cook.
Google doodle. Les Paul guitar (Click the button).
ChucK. ChucK is a specialized programming language for real-time synthesis, composition, and performance originated by Ge Wang and Perry Cook at Princeton University. Here's the Karplus-Strong algorithm in ChucK.

Frequently Asked Questions

Q: Do I need to follow the prescribed API?
A: Yes, we will be testing the methods in the API directly. If your method has a different signature or does not behave as specified, you will lose a substantial number of points. You may not add public methods to the API; however, you may add private methods (which are only accessible in the class in which they are declared).
Q: Where do I enter keystrokes in GuitarHeroLite and GuitarHero?
A: Be sure that the standard draw window has focus by clicking in it. Then, type the keystrokes.
Q: How do I determine the length of an array?
If you're asking this, you probably need to review chapter 7.
Q: Is the size of a RingBuffer equal to the number of nonzeros?
A: No. Some of the elements in the buffer can be zero. To get an accurate count, increment the instance variable size each time you call enqueue() and decrement it each time you call dequeue().
Q: What should RingBuffer do if the client attempts to dequeue() from an empty buffer or enqueue() into a full buffer?
A: We recommend throwing an exception to indicate the error.
Q: How do I round a double to the nearest int?
A: We have encountered the problem many times.
Q: What happens if I call StdAudio.play(x) where x is greater than 1 or less than -1?
A: The value is clipped—it is replaced by the value 1.0 or -1.0, respectively.
Q: I get an ArrayOutOfBounds or NullPointerException error in RingBuffer. What could cause this?
A: Does your constructor correctly initialize all of the instance variables? Did you allocate memory for your array? Did you inadvertently redeclare an instance variable in a method or constructor, thereby shadowing the instance variable with the same name?
Q: I get a Ring buffer underflow error in GuitarHeroLite before I type any keystrokes. Why?
A: Did you forget to initialize the ring buffer to contain N zeros in your GuitarString constructor?
Q: When I run GuitarHeroLite for the first time, I hear no sound. What am I doing wrong?
A: Make sure you have tested with the main() provided for GuitarString. If that works, it is likely something wrong with pluck() since the main() provided for GuitarString does not test that method. To diagnose the problem, print out the values of sample() and check that they become nonzero after you type lower case characters 'a' and 'c'.
Q: When I run GuitarHeroLite, I hear static (either just one click, and then silence or continual static). What am I doing wrong?
A: It's likely that pluck() is working, but tic() is not. The best test is to run the main() provided for GuitarString.
Q: How do I use keyboard.indexOf(key)?
A: If keyboard is a String and key is a character, then keyboard.indexOf(key) return the integer index of the first occurrence of the character key in the string keyboard (or -1 if it does not occur).
Should I hardwire the constants 44,100, 110.0, 440.0, 880.0, and 37 in my program? No, in general, we will deduct if you use an unnamed constant (such as 37) in your program more than once. We recommend using the name SAMPLING_RATE for 44,100 and CONCERT_A for 440. But you need not name all of the constants in the formula 2^{(i - 24) / 12}.
