Computer Networks and Network Security: Lab Assignment One

Due Sep. 30, 2025 in class or by email to the TA. This assignment gives you a chance to analyze communication systems.

[P1 (5 points)] Try to use traceroute and other tools to find:
1. A destination host on the Internet so that the route from your laptop/desktop to the destination has the largest number of hops that you can find. Please list the hops. What is your strategy to find such a host?
2. A destination host on the Internet so that the route from your laptop/desktop to the destination traverses the largest number of ISPs. You can get full credit if it has at least 5 different ISPs, but we encourage you to try to find a longer one. What is your strategy to find such a host?
[P2 (10 points)] Suppose the number of people at XMU is 78000. Determine the number of external phone lines that XMU will need in order to achieve a call blocking percentage of 0.01%. Assume that each person at XMU makes five external phone call per day, and each such phone call lasts on average 90 seconds, with the memoryless distribution.
[P3 (10 points)] Suppose that you are designing a Web server for your startup. You have acquired a single machine with a quad-core processor. Assume that CPU is the bottleneck. You anticipate that Web requests arrive (memoryless) at a rate of 15 requests/second, and benchmarking shows that it takes a core on average 200 ms to serve a Web request. What is the average service time that each Web request experiences? If it is a dual-core processor, what happens? You need to draw the state diagram when working on this problem.
[P4 (5 points)] This elementary problem explores propagation delay and transmission delay, two central concepts in data networking. Consider two hosts, A and B, connected by a single link of rate R bps. Suppose that the two hosts are separated by m meters, and suppose the propagation speed along the link is s meters/sec. Host A is to send a packet of size L bits to Host B.
1. Express the propagation delay, d_prop, in terms of m and s.
2. Determine the transmission time of the packet, d_trans, in terms of L and R.
3. Ignoring processing and queuing delays, obtain an expression for the end-to-end delay.
4. Suppose Host A begins to transmit the packet at time t = 0. At time t = d_trans, where is the last bit of the packet?
5. Suppose d_prop is greater than d_trans. At time t = d_trans, where is the first bit of the packet?
6. Suppose d_prop is less than d_trans. At time t = d_trans, where is the first bit of the packet?
7. Suppose s = 2.5 x 10⁸, L = 120 bits, and R = 56 kbps. Find the distance m so that d_prop equals d_trans.
[P5 (10 points)] Suppose two hosts, A and B, are separated by 20,000 kilometers and are connected by a direct link of R = 2 Mbps. Suppose the propagation speed over the link is 2.5 · 10⁸ meters/sec.
1. Calculate the bandwidth-delay product, R · d_prop.
2. Consider sending a file of 800,000 bits from Host A to Host B. Suppose the file is sent continuously as one large message. What is the maximum number of bits that will be in the link at any given time?
3. Provide an interpretation of the bandwidth-delay product.
4. What is the width (in meters) of a bit in the link? Is it longer than a football field?
5. Derive a general expression for the width of a bit in terms of the propagation speed s, the transmission rate R, and the length of the link m.
[P6 (10 points)] In this problem, we consider sending real-time voice from Host A to Host B over a packet-switched network (VoIP). Host A converts analog voice to a digital 64 kbps bit stream on the fly. Host A then groups the bits into 56-byte packets. There is one link between Hosts A and B; its transmission rate is 2 Mbps and its propagation delay is 10 msec. As soon as Host A gathers a packet, it sends it to Host B. As soon as Host B receives an entire packet, it converts the packet’s bits to an analog signal. How much time elapses from the time a bit is created (from the original analog signal at Host A) until the bit is decoded (as part of the analog signal at Host B)?
[P7 (5 points)] Suppose you would like to urgently deliver 40 terabytes data from Beijing to Xiamen. You have a 100 Mbps dedicated link available for data transfer. Would you prefer to transmit the data via this link or instead use SF Express over-night delivery? What if the data needs to be delivered from Fuzhou to Xiamen? Explain.
[P8 (10 points)] Consider an application that transmits data at a steady rate (for example, the sender generates an N-bit unit of data every k time units, where k is small and fixed). Also, when such an application starts, it will continue running for a relatively long period of time. Answer the following questions, briefly justifying your answer:
1. Would a packet-switched network or a circuit-switched network be more appropriate for this application? Why?
2. Suppose that a packet-switched network is used and the only traffic in this network comes from such applications as described above. Furthermore, assume that the sum of the application data rates is less than the capacities of each and every link. Is some form of congestion control needed? Why?
[P9 (10 points)] Suppose users share a 3 Mbps link. Also suppose each user requires 150 kbps when transmitting, but each user transmits only 10 percent of the time. (You can refer to the discussion of packet switching versus circuit switching in Section 1.3.2. of the textbook, if you want.)
1. When circuit switching is used, how many users can be supported?
2. For the remainder of this problem, suppose packet switching is used. You can use either our queueing analysis in class or direct binomial distribution analysis. Find the probability that a given user is transmitting.
3. Suppose there are 120 users. Find the probability that at any given time, exactly n users are transmitting simultaneously.
4. Find the probability that there are 26 or more users transmitting simultaneously.
[P10 (10 points)] In modern packet-switched networks, including the Internet, the source host segments long, application-layer messages (for example, an image or a music file) into smaller packets and sends the packets into the network. The receiver then reassembles the packets back into the original message. We refer to this process as message segmentation. The figure below illustrates the end-to-end transport of a message with and without message segmentation. Consider a message that is 8x10⁶ bits long that is to be sent from source to destination in the figure below. Suppose each link in the figure is 2 Mbps. Ignore propagation, queuing, and processing delays.
1. Consider sending the message from source to destination without message segmentation. How long does it take to move the message from the source host to the first packet switch? Keeping in mind that each switch uses store-and-forward packet switching, what is the total time to move the message from source host to destination host?
2. Now suppose that the message is segmented into 800 packets, with each packet being 10,000 bits long. How long does it take to move the first packet from source host to the first switch? When the first packet is being sent from the first switch to the second switch, the second packet is being sent from the source host to the first switch. At what time will the second packet be fully received at the first switch?
3. How long does it take to move the file from source host to destination host when message segmentation is used? Compare this result with your answer in part (a) and comment.
4. In addition to reducing delay, what are reasons to use message segmentation?
5. Discuss the drawbacks of message segmentation.

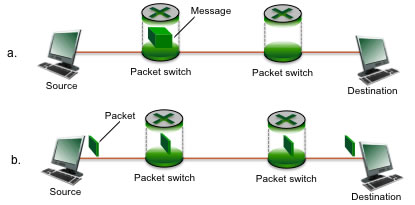

Figure for P10: End-end message transport: (a) without message segmentation; (b) with message segmentation.
[P11 (10 points)] Consider sending a large file of F bits from Host A to Host B. There are three links (and two switches) between A and B, and the links are uncongested (that is, no queuing delays). Host A segments the file into segments of S bits each and adds 100 bits of header to each segment, forming packets of L = 100 + S bits. Each link has a transmission rate of R bps. Find the value of S that minimizes the delay of moving the file from Host A to Host B. Disregard propagation delay.
[P12 (5 points)] Google Voice is a software that allows you to make a phone call from a PC to an ordinary phone. This means that the voice call must pass through both the Internet and through a telephone network. Discuss how this might be done.
